A horizontal water tank requires a flat, solid base that supports the tank in its intended position. Uneven support, loose gravel, rough surfaces and improper pipe connections can affect installation stability or place stress on the tank and its fittings.
Before selecting an installation location, check the following five requirements.
1. Choose a Flat, Solid Base
Install the horizontal water tank on a flat, solid surface.
The base must support the weight of the tank and its water. It should also accommodate the support arrangement specified for the tank model.
Check that:
- The installation surface is level.
- The foundation can carry the filled tank.
- The tank’s designated support areas are properly supported.
- The base is suitable for the tank’s dimensions.
Foundation requirements should be confirmed against the manufacturer’s installation specifications.
2. Avoid Uneven Ground, Gravel and Rough Surfaces
There are three unsuitable support conditions:
- Uneven surfaces: Can cause improper tank support and uneven loading.
- Loose gravel: Does not provide the flat, solid base required by the installation guide.
- Rough surfaces: May create concentrated contact points or damage the tank.
The installation surface should be prepared before positioning the tank.
3. Keep the Tank Properly Balanced
The tank must be positioned so that its weight is distributed through the intended support areas.
- Keep the tank properly balanced.
- Ensure all designated support areas are correctly supported.
- Avoid uneven support arrangements.
- Check the tank’s position before filling.
Uneven support can create concentrated loads on the tank structure.
4. Support Fittings When Connecting Pipes
Pipe connections must be installed without placing unnecessary mechanical stress on the tank fittings.
Make sure During installation:
- Align pipes with the tank connections.
- Support the fittings during pipe connection.
- Avoid forcing misaligned pipework into the fittings.
- Provide independent support for pipework where required.
The final piping arrangement should follow the applicable tank and plumbing specifications.
5. Keep the Tank Lid Properly Closed
Keep the the tank lid to remain closed because, the lid protects the tank opening from external contaminants such as dust, insects and debris.
After installation or inspection, check that the lid is correctly positioned and securely closed.
The tank location should also allow the lid to be accessed for inspection and maintenance.

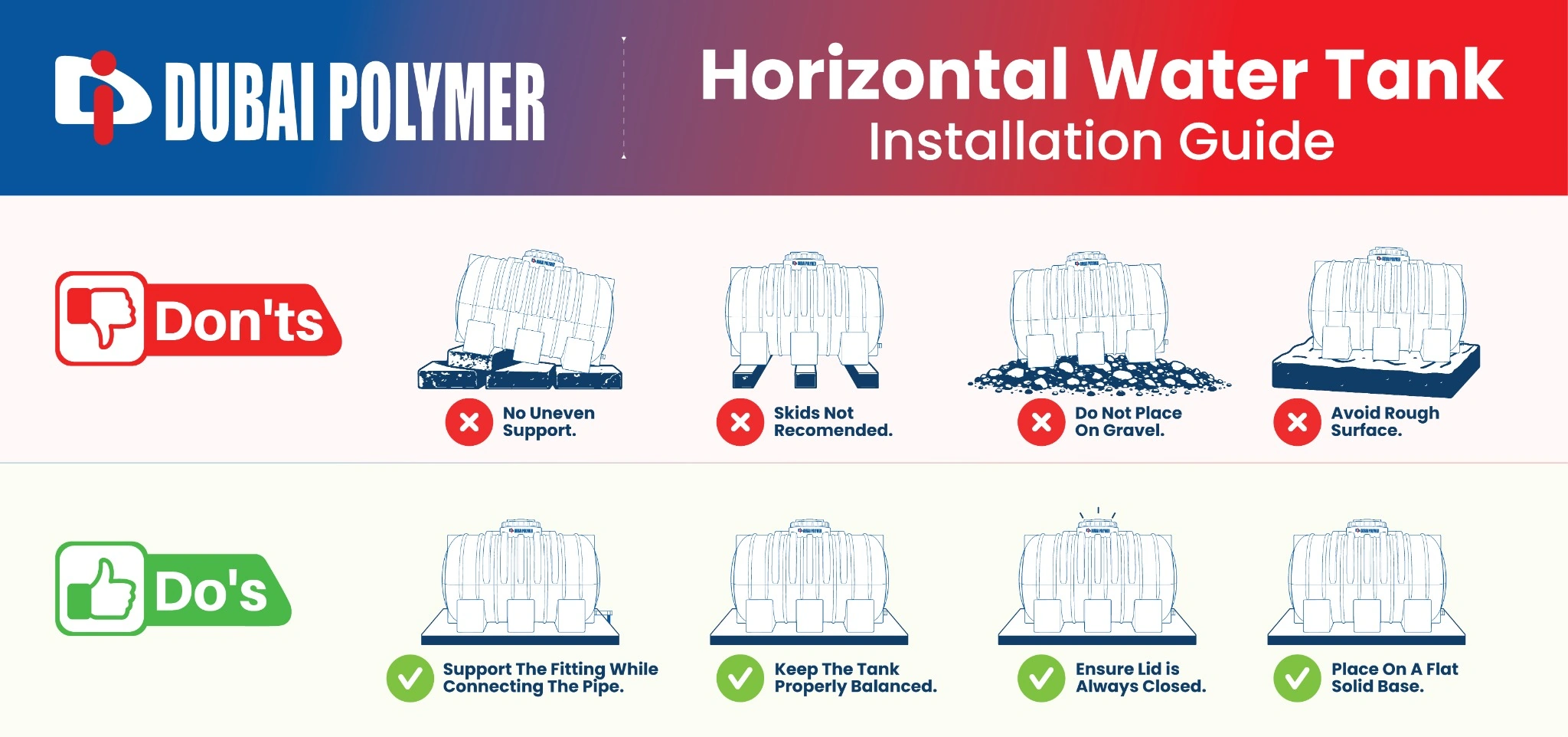

Horizontal Water Tank Installation: Do’s and Don’ts
|
Do’s |
Don’ts |
|
Place the tank on a flat, solid base. |
Do not install on uneven supports. |
|
Keep the tank properly balanced. |
Do not use skids. |
|
Support fittings while connecting pipes. |
Do not place the tank directly on gravel. |
|
Keep the tank lid closed. |
Avoid rough installation surfaces. |
Horizontal Water Tank Specifications
Before preparing the installation area, check the dimensions, capacity and support requirements of the selected tank.
Dubai Polymer offers a range of horizontal water tanks in uae for residential, commercial and industrial applications in the UAE.
Frequently Asked Questions
Can a horizontal water tank be placed directly on gravel?
No. Install the tank on a properly prepared, flat and solid base rather than directly on loose gravel.
Can skids be used under a horizontal water tank?
Skids are not recommended for our horizontal water tanks. Follow the approved support arrangement for the selected model.
Does a horizontal water tank require a level surface?
Yes. The base must be level and provide proper support for the tank.
Why should pipe fittings be supported during installation?
Supporting the fittings prevents unnecessary mechanical stress while connecting the pipes.
Can horizontal water tanks be installed on rooftops?
Rooftop installation depends on the tank model, structural load capacity and applicable building requirements. Confirm suitability before installation.
